MHBT Badger Breaker®

MHBT Badger Breaker®

Download Spec Sheet

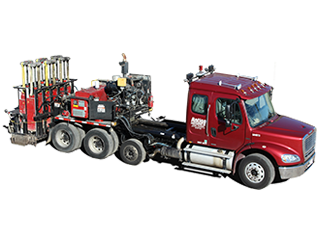

The MHBT Badger Breaker® is a truck-mounted, multi-head concrete pavement breaker which carries 1,000 to 1,200 pound hammers mounted laterally in pairs with half the hammers in a forward row and the remainder diagonally offset in a rear row so that there is continuous breakage from side to side. Each pair of hammers is attached to a hydraulic lift cylinder which operates as an independent unit, develops between 1,000 and 8,000 foot pounds of breaking energy depending upon the lift height selected, and cycles at a rate of 30 to 35 impacts per minute. The 8-foot wide machine carries twelve hammers 8 inches in width. Due to individual control of each lifting cylinder, breaking can be as narrow as 2.67 feet or increased in increments to as wide as 8 feet. The typical production rate per MHBT is 1 lane mile per shift when rubblizing and 2 to 3 lane miles per shift when breaking for removal.



Manufactured by:

U.S. Patent # 5695254
Eur. Patent # 0 858 532


Badger State Highway Equipment, Inc. reserves the right to make changes in specifications shown herein or add improvements at any time without notice or obligation.
