Break & Seat

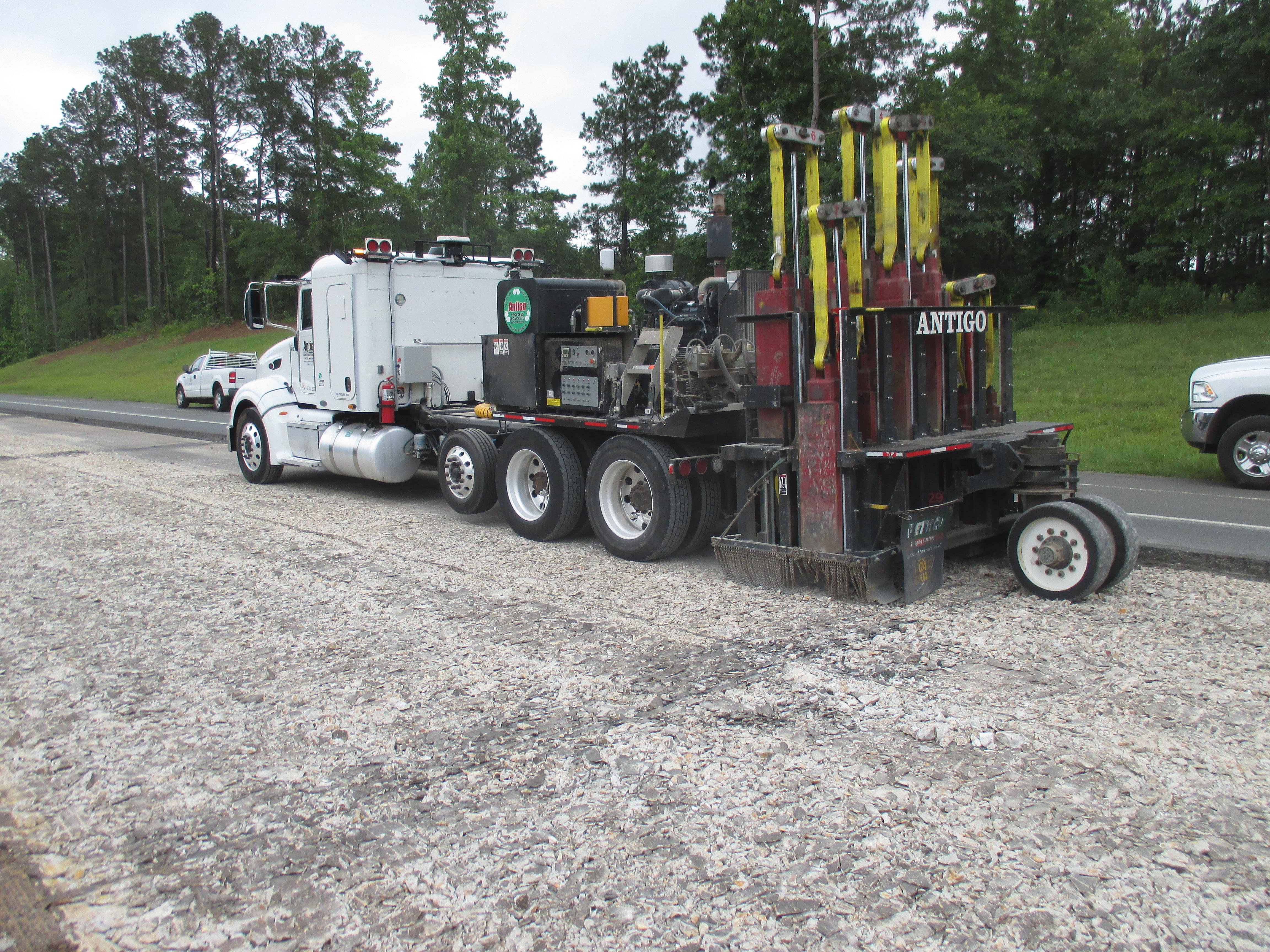

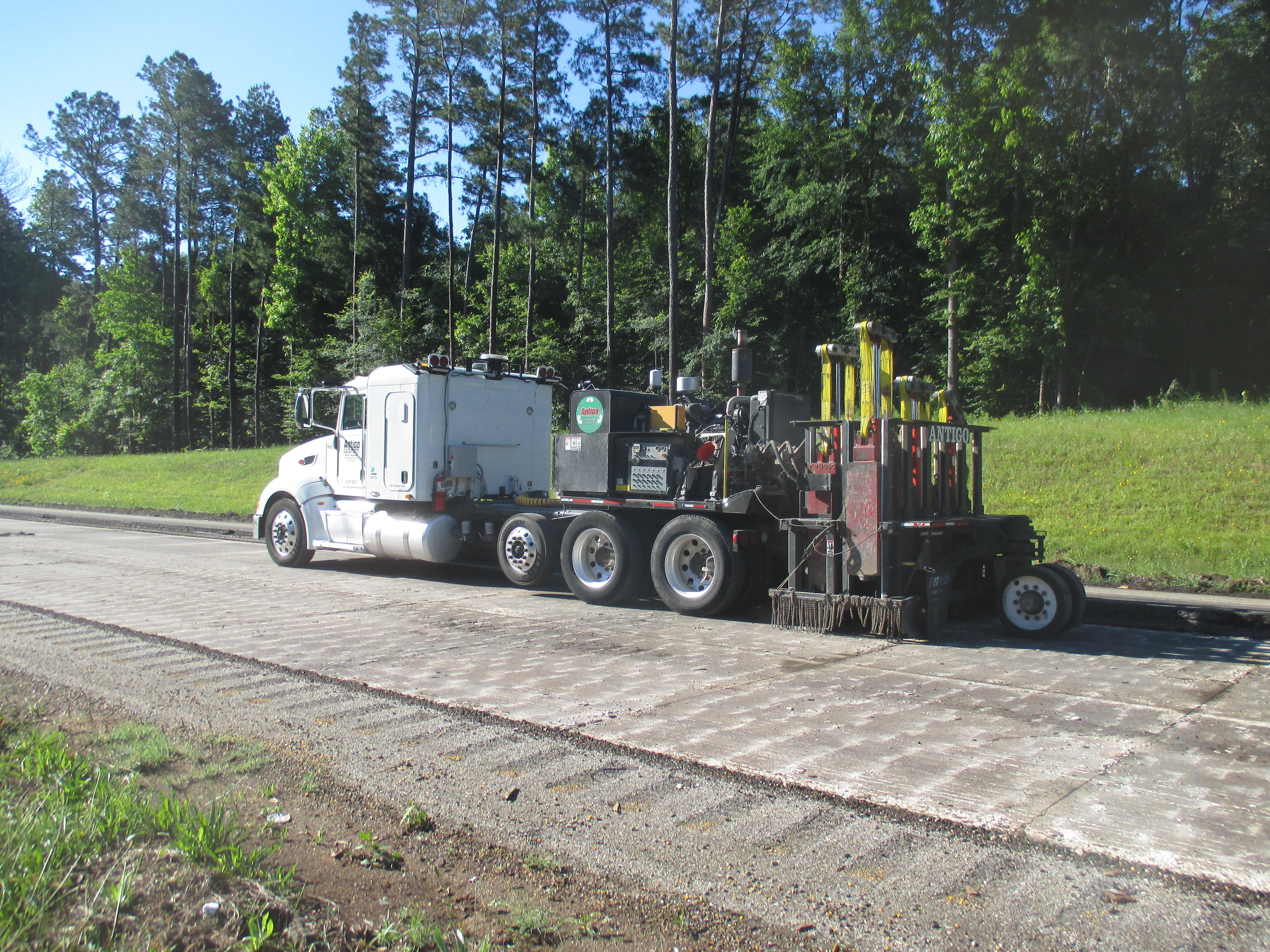

Break & Seat with MHB

WEBSTER PARISH, LOUSIANA, USA

Break & Seat: I-20, Dixie Inn to Bienville Parish line.

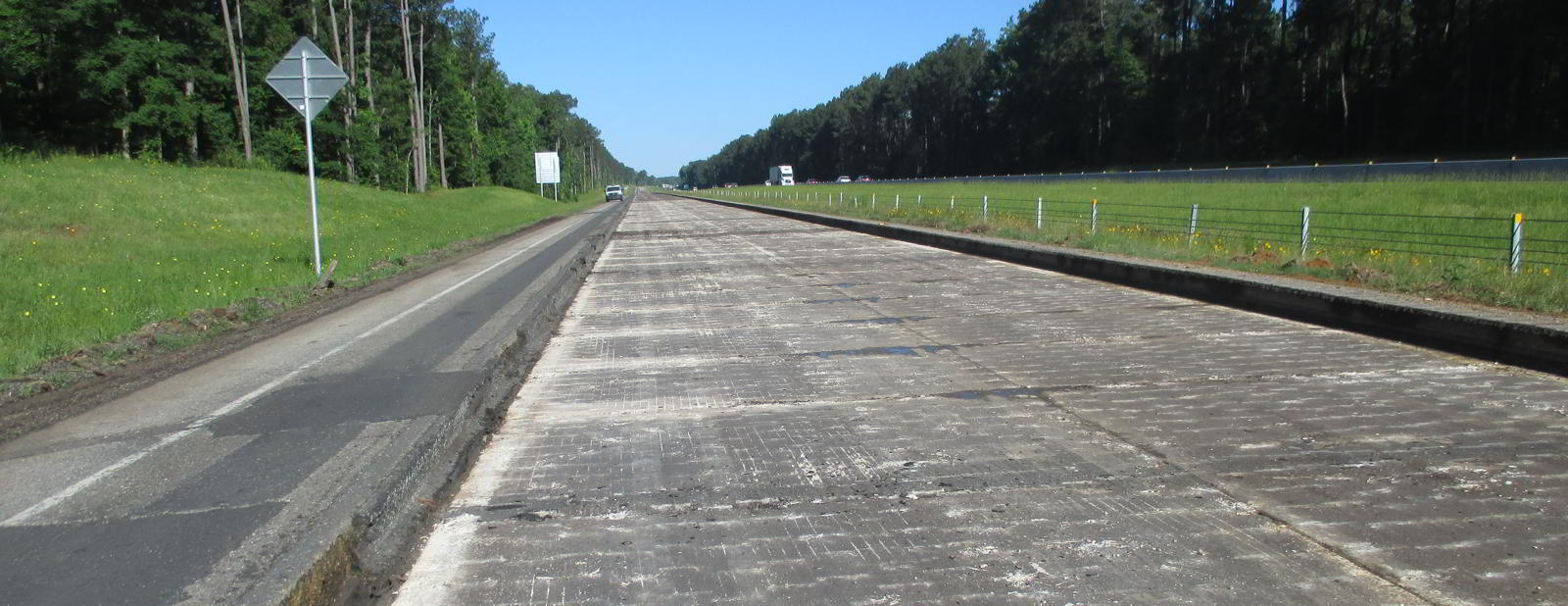

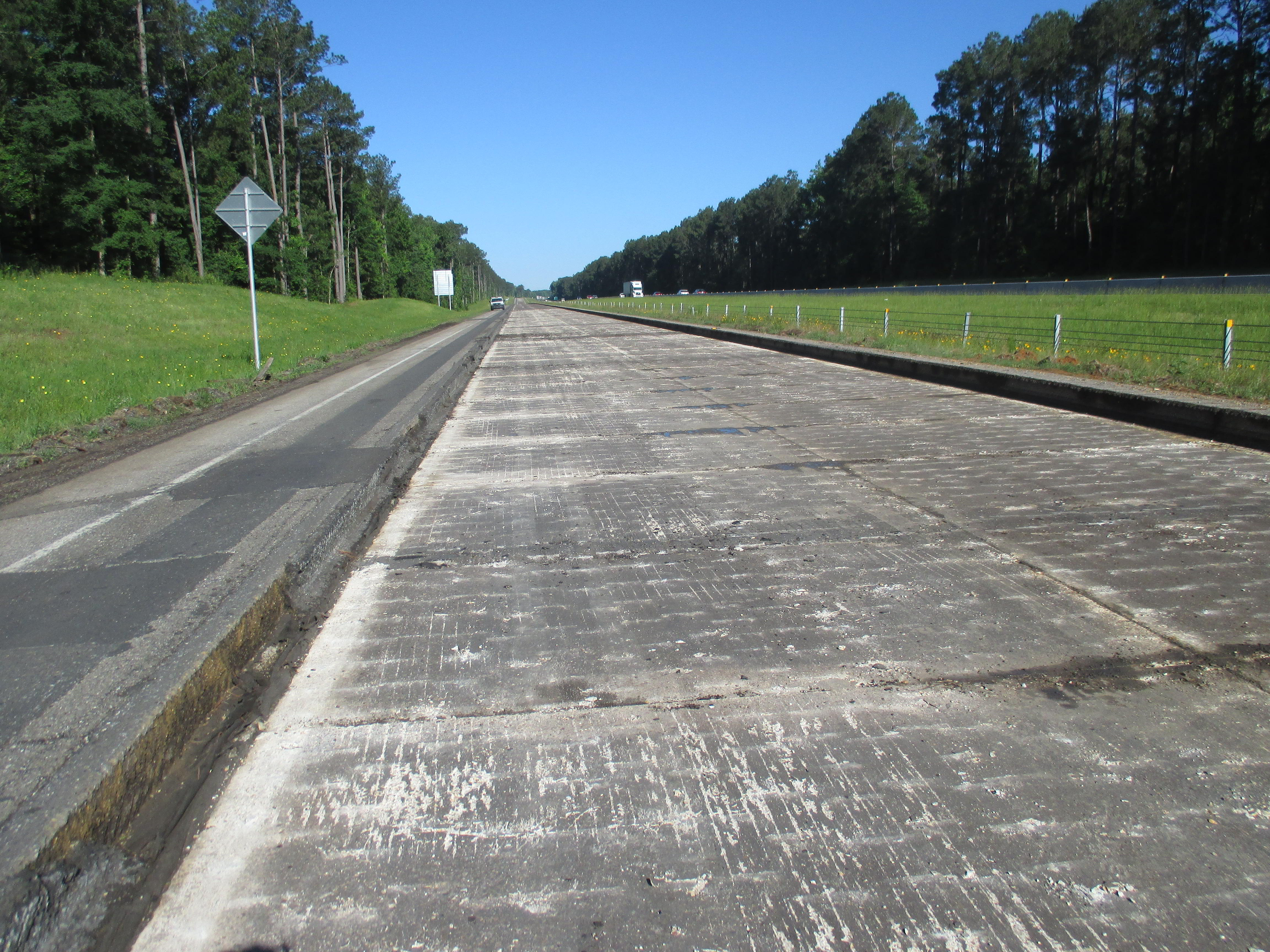

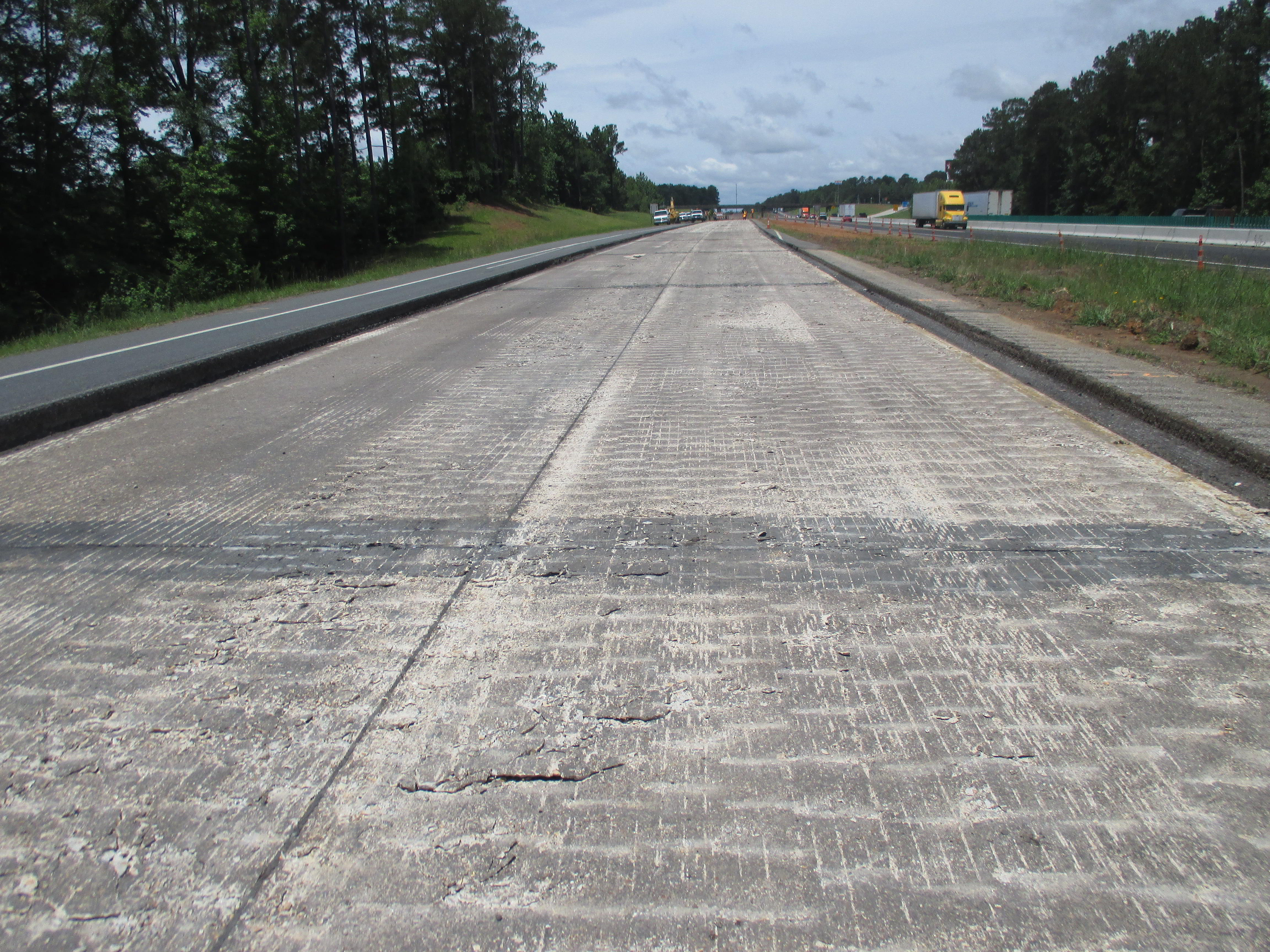

This project located in Webster Parish, Louisiana, included 10,000 square yards of concrete pavement break & seat and asphalt overlay. This asphalt paving project was 10 miles long, the majority of which had been previously broken & seated and overlaid with asphalt. Antigo broke those areas not broken previously.

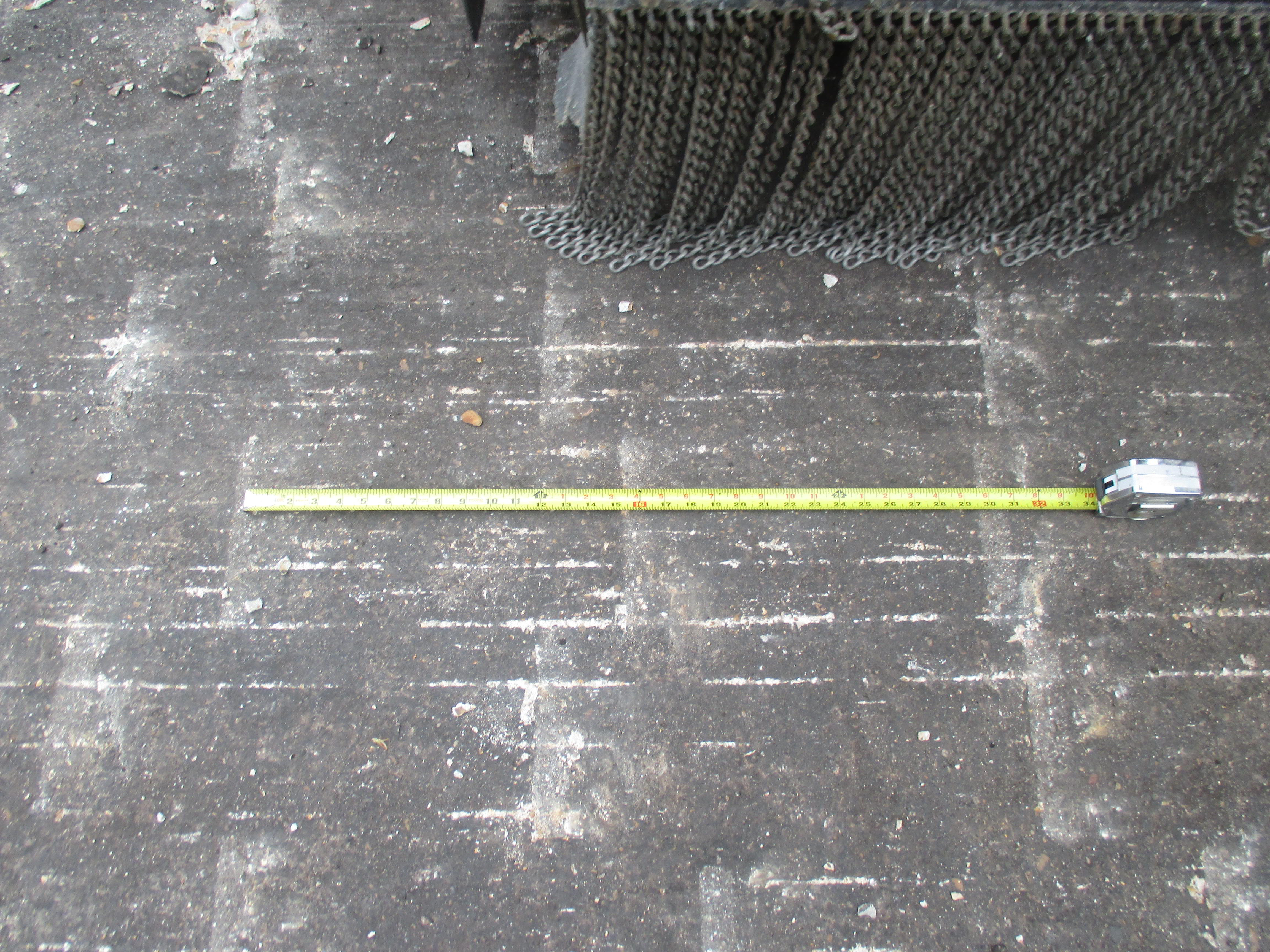

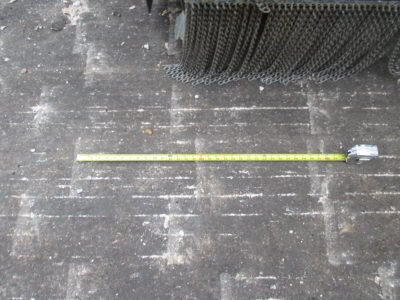

The Louisiana Department of Transportation and Development (LA DOTD) special provision “Breaking and Seating Pavement” requires that the concrete be broken to generally 24” or smaller, with no more than 20 percent of the material larger than 24” and no individual fragments larger than 30” based on visual inspection of the surface.

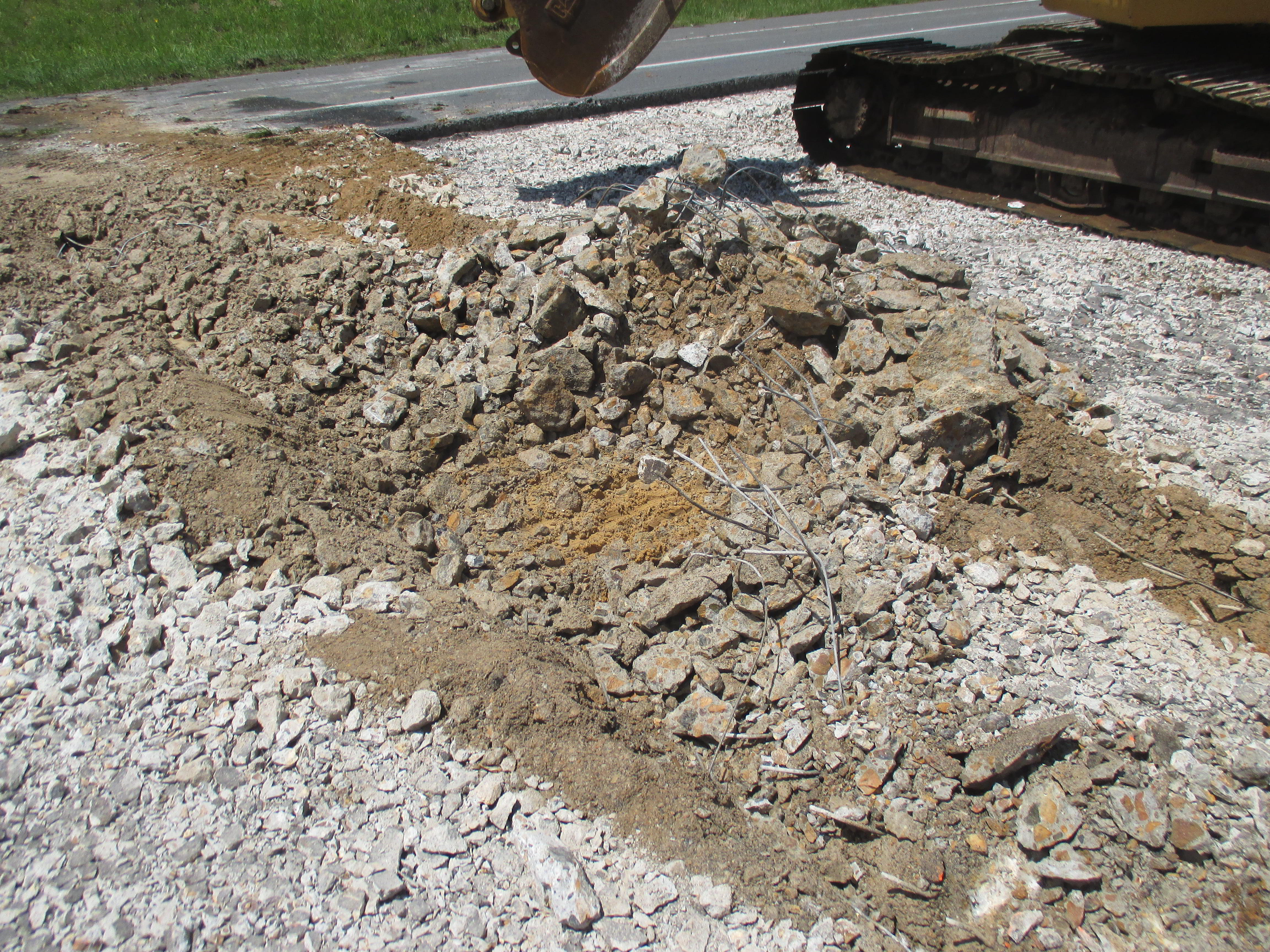

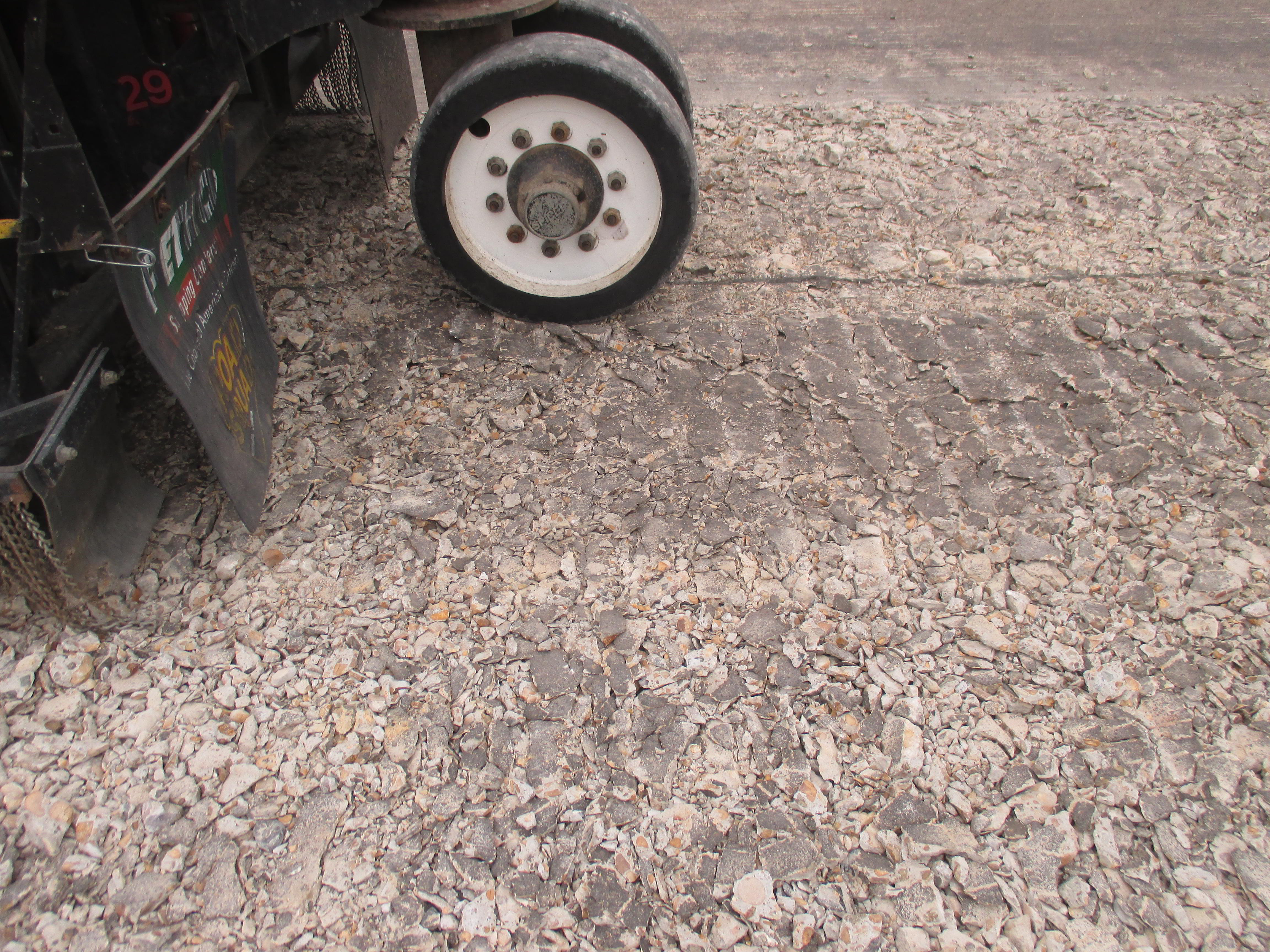

Antigo also completed a test section of full rubblization for LA DOTD.

View Break & Seat Media

Project Details

Location

I-20, Dixie Inn to Bienville Parish line, Louisiana, USA

Quantity

Break & seat and rubblize 10,664 square yards

Existing Pavement

10” thick jointed reinforced concrete pavement (JRCP)

New Pavement

10”-13” thick asphalt overlay

When

Break & seat and rubblization test section completed in 1.5 work days during May, 2017

Owner

Louisiana Department of Transportation and Development, S.P. No. H.010480

Contractor

Madden Construction Co., Inc., Minden, Louisiana
