Crack & Seat
2-Lane Highways

DeKalb County, Illinois, USA

Waterman Road, n/o Waterman

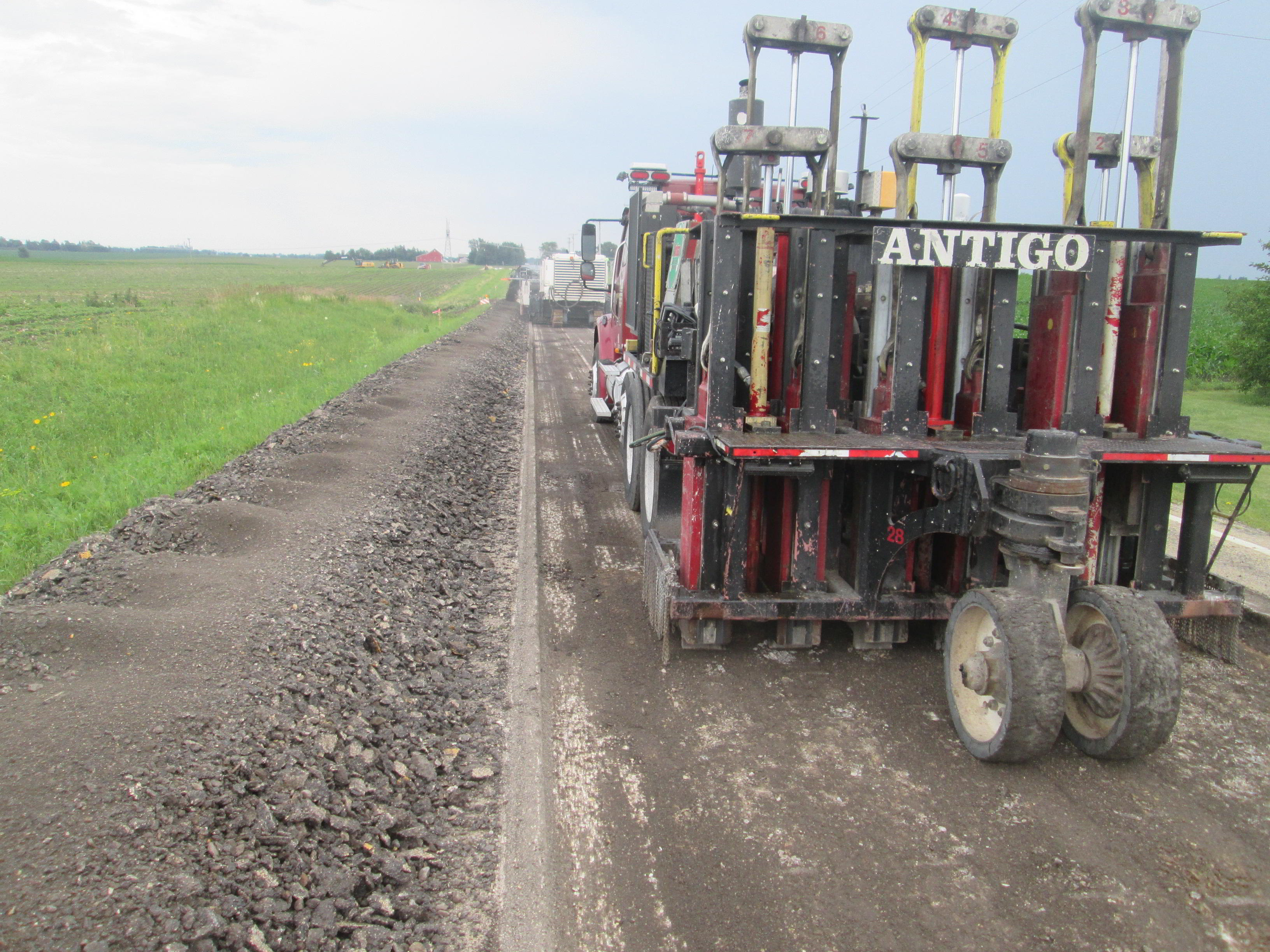

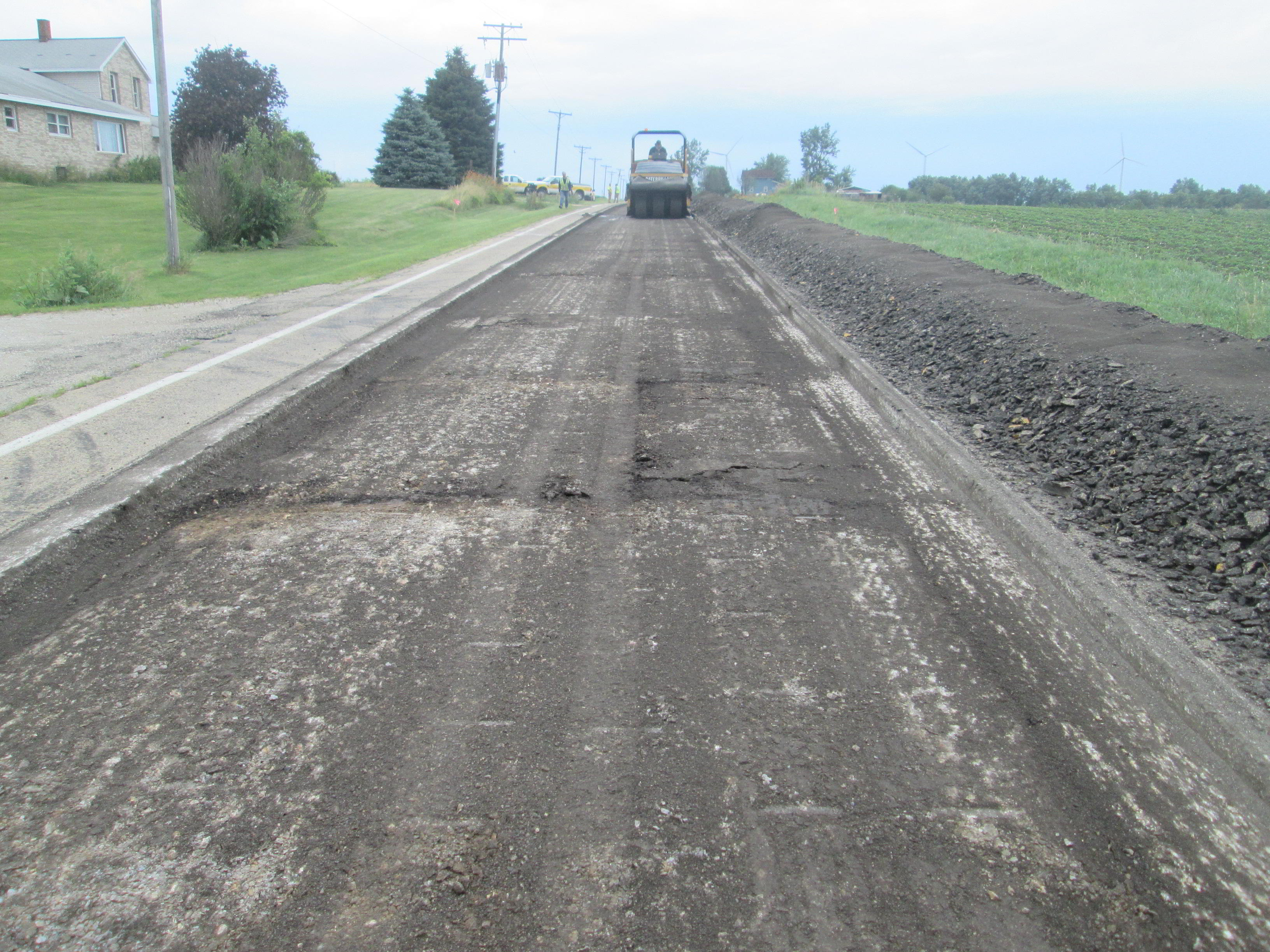

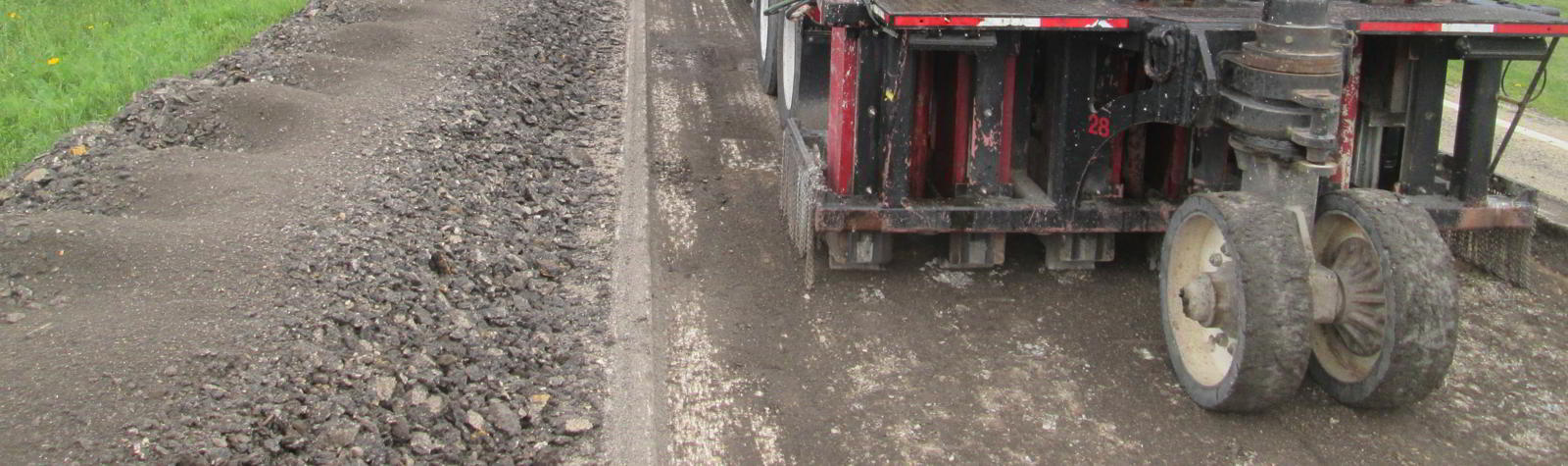

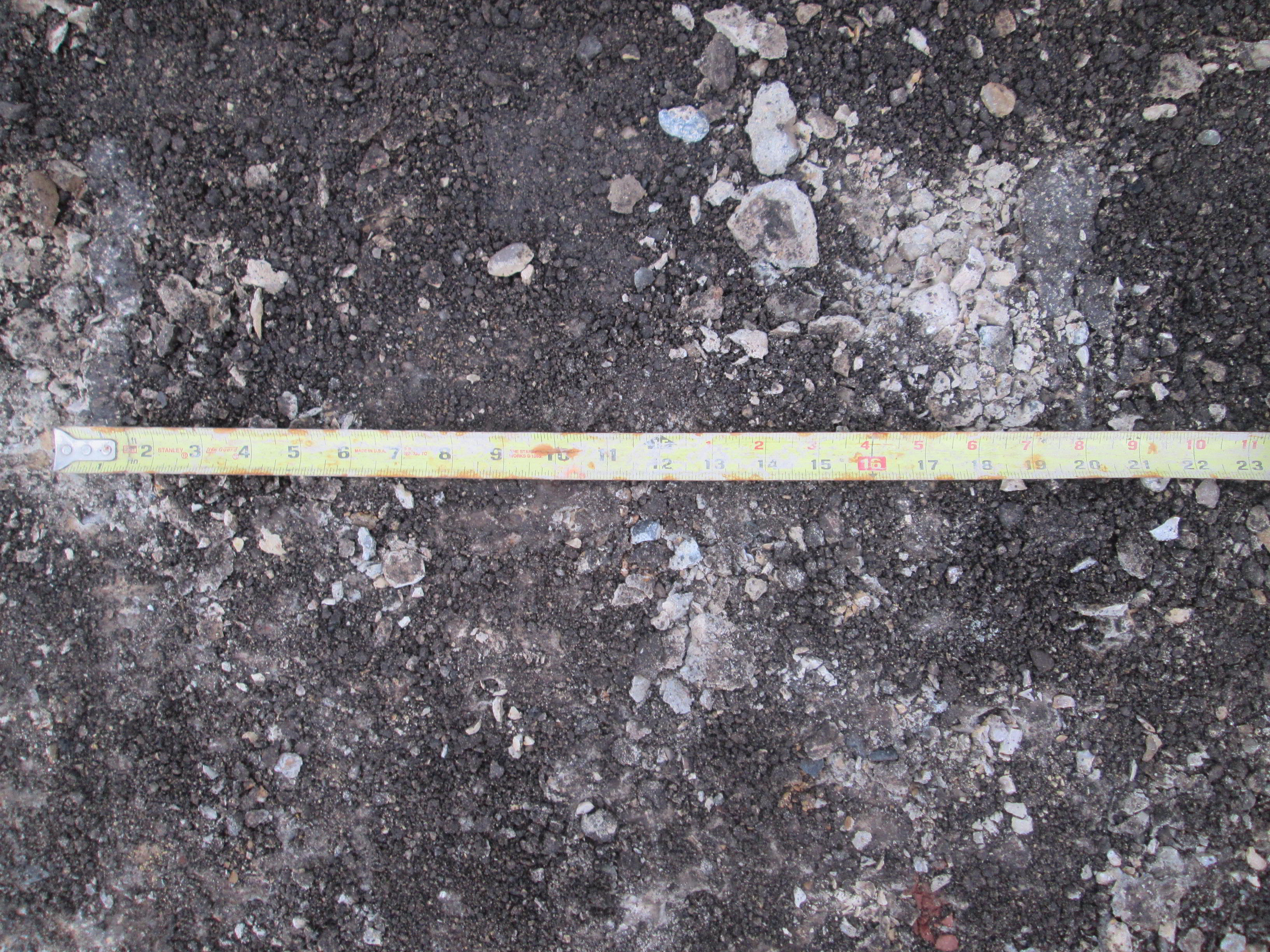

Antigo used a MHB Badger Breaker® to crack an old 11’-wide concrete pavement after the existing asphalt overlay was milled off and windrowed on the shoulder. The cracked concrete was seated with a pneumatic-tired roller and then the asphalt millings were bladed back over the concrete as a base for the new aggregate layer with a bituminous surface treatment.




View Crack & Seat Media

Project Details

Location

Waterman Road, n/o Waterman, DeKalb County, Illinois, USA

Existing Pavement

5” to 7” thick JPCP with 5” thick asphalt overlay

New Pavement

6" aggregate surface course and bituminous surface treatment

When

June, 2017
